Small U-Shaped Neodymium Magnets for Precision Electronics and Sensors
Small U-Shaped Magnet Product Lineup
Explore Fullzen's mini and small U-shaped neodymium magnet models — from 5mm micro sizes to 25mm compact models, with precision tolerances for electronics and sensor applications.

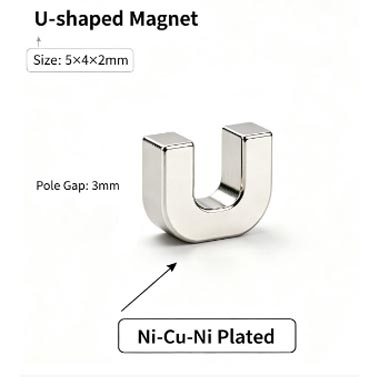

Micro Precision — 5 mm, 1.5 kg Pull Force
Ultra‑miniature 5×4×2 mm U‑shaped neodymium magnet, high‑grade N48, with a 3 mm pole spacing. Finished with a Ni‑Cu‑Ni triple‑nickel coating and tight dimensional tolerance of ±0.03 mm. Engineered for magnetic holding structures inside micro sensors, precision instruments and consumer electronics. With a tiny volume of only around 0.15 cm³, this is the smallest mass‑produced U‑magnet available from Fullzen.

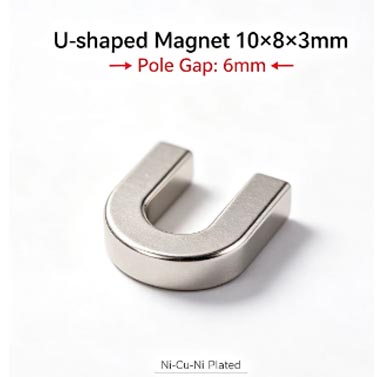

Mini — 10mm, 3 kg Pull Force]
10×8×3mm miniature U-shaped neodymium magnet, N45 grade, pole distance 6 mm. With Ni-Cu-Ni coating, dimensional tolerance ±0.05 mm. Widely applied in mini solenoid valves, small magnetic switches, headphone magnetic assemblies and precision electronic locks. It is one of the most popular small-size U-shaped magnets for the consumer electronics industry.

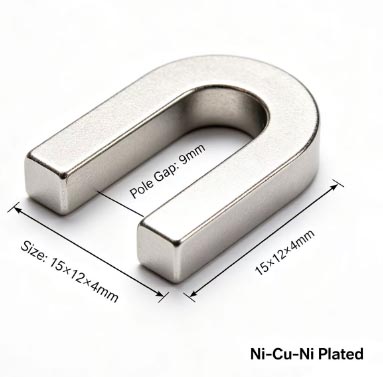

[Small Industrial — 15mm, 5 kg Pull Force]
15×12×4mm small U-shaped neodymium magnet, N42 grade, pole distance 9 mm. Ni-Cu-Ni triple nickel coating. Suitable for industrial sensors, small fixtures, inspection equipment and positioning & holding functions in automation machinery. Stable performance and excellent batch consistency, ideal for mass industrial applications.

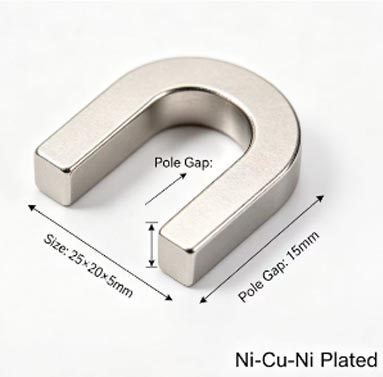

[Compact — 25mm, 8.5 kg Pull Force]
25×20×5mm compact U-shaped neodymium magnet, N42 grade, pole distance 15 mm. Ni-Cu-Ni coating. A versatile standard size for compact equipment — used for light industry fixtures, teaching instruments, small magnetic separators, door lock magnetic catches and electronic device holding. This is also the best-selling standard model among Fullzen small U-shaped magnets.
Custom Small-U-Shaped Magnet Manufacturing
Fullzen provides full custom manufacturing for small and micro U-shaped magnets — ultra-mini sizes down to 3mm, precision tolerances, special coatings and custom magnetization patterns.
Key Specifications at a Glance
Precision Manufacturing for Micro Magnet Applications
Small U-shaped magnets require exceptional dimensional accuracy and consistency — especially for sensor and precision electronics applications. The technical challenge for small U-shaped magnets is not about making them tiny, but maintaining high precision and consistency at miniature sizes. Sensors and precision electronic devices impose strict requirements on dimensional tolerance and magnetic consistency of magnets. A dimensional deviation of 0.02mm may shift the trigger point of sensors and directly affect product performance.
Three core advantages of Fullzen precision manufacturing
• Precision cutting: Processed by wire cutting machines and precision grinders, with dimensional tolerance controlled within ±0.03mm and angular tolerance ±0.3°.
• Consistent magnetic performance: Flux deviation within the same batch ≤ ±3%, better than the industrial standard of ±5%, to guarantee consistent sensor triggering.
• Full inspection before shipment: 100% full inspection on appearance, magnetic performance and dimensions for micro models, zero delivery of non-conforming products.
Many customers switch to Fullzen from other suppliers due to consistency issues of small-size magnets. Magnets from previous suppliers show uneven holding force after assembly; some sensors can be triggered while others fail. Fullzen’s precision manufacturing process solves this problem thoroughly and ensures stable and reliable performance of your products.
Need larger U-shaped magnets? Check our heavy-duty U-shaped neodymium magnet product line (5-95kg pull force).
Precision Manufacturing for Micro Magnet Applications
Fullzen small U-shaped neodymium magnets are widely adopted in consumer electronics, industrial sensors, medical devices, precision instruments and automotive electronics, especially for applications that require miniature size, tight tolerance and highly consistent magnetic performance.
Consumer Electronics and Wearables
Miniature U-shaped magnets are commonly used for magnetic attraction and precise positioning in Bluetooth earbud charging cases, smart watch straps, tablet stylus attachments, and laptop screen latching. Fullzen 10×8×3mm and 15×12×4mm are our best-selling models for consumer electronics. High-end surface treatments such as Parylene medical-grade coating and gold plating are available for premium applications.
Industrial Sensors and Switches
U-shaped magnets are the core magnetic component for Hall sensors, reed switches, proximity switches and position sensors. The open U-type structure creates a uniform and controllable magnetic field for stable signal triggering. Fullzen small U-shaped magnets feature batch flux deviation within ±3%, ensuring highly consistent sensor activation. We provide stable mass supply for numerous professional sensor manufacturers.
Medical and Healthcare Devices
Magnetic structures in blood glucose meters, inhalers, portable diagnostic devices and beauty equipment require extreme reliability and biocompatibility. Fullzen Parylene-coated miniature U-shaped magnets pass biocompatibility tests and are widely supplied to medical device factories. The ISO 13485 quality system ensures full-process traceability and stable medical-grade quality.
Automotive Electronics
Small U-shaped neodymium magnets are increasingly applied in automotive sensors, actuators and micro solenoid valves. Automotive-grade applications demand outstanding temperature resistance and long-term stability. Fullzen SH and UH high-temperature grade U-shaped magnets comply with IATF 16949 automotive quality standards, supporting reliable mass production for automotive component suppliers.
Precision Instruments and Meters
Magnetic assemblies in precision measuring equipment, analytical instruments and optical devices require ultra-high dimensional accuracy and magnetic stability. Our precision U-shaped magnets achieve tight ±0.03mm tolerance and ±3% flux consistency, meeting the strict requirements of high-precision instrument industries.
Small Fixtures and Assembly Tooling
Small U-shaped magnets provide balanced holding force for electronic assembly jigs, micro fixtures and watch repair tools. They firmly fix tiny workpieces without damaging precision components. 15×12×4mm and 25×20×5mm are the most popular standard sizes for tooling and fixture applications.
Application Scenarios
Fullzen small U-shaped neodymium magnets have been widely adopted in the following precision application scenarios:
Consumer Electronics and Wearables
Magnetic attraction for Bluetooth earbud charging cases, smartwatch bands, tablet styluses, and laptop screen latching. Micro U-shaped magnets are heavily applied in consumer electronics to achieve fast positioning and firm adsorption. Fullzen 10×8×3 and 15×12×4 are our two most popular specifications among consumer electronics clients. High-end surface treatments such as medical-grade Parylene coating and gold plating are available.
Industrial Sensors and Switches
Hall sensors, reed switches, proximity switches and position sensors represent the largest application field for small U-shaped magnets. The open structure of U-shaped magnets delivers a uniform and controllable magnetic field for sensors. Fullzen precision small U-shaped magnets feature magnetic flux deviation ≤±3%, guaranteeing highly consistent trigger points for every sensor. We provide mass supply for many renowned sensor manufacturers.
Medical and Healthcare Devices
Blood glucose meters, inhalers, portable diagnostic equipment, beauty devices, and more. Magnetic structures in medical devices demand exceptional reliability and biocompatibility. Fullzen micro U-shaped magnets with Parylene coating have passed biocompatibility tests and are mass-supplied to multiple medical device manufacturers. The ISO 13485 medical quality management system ensures full traceability throughout production.
Automotive Electronics
Small U-shaped magnets are increasingly used in sensors, actuators and miniature solenoid valves within automotive electronics. Automotive-grade applications impose strict requirements on reliability and temperature stability. Fullzen small U-shaped magnets in SH and UH high-temperature grades are certified to IATF 16949, enabling stable supply for auto component manufacturers.
Precision Instruments and Meters
Magnetic circuit assemblies for precision measuring instruments, analytical equipment and optical devices require extremely tight dimensional tolerance and stable magnetic performance. Fullzen precision small U-shaped magnets hold a tolerance of ±0.03mm with magnetic flux consistency of ±3%, serving numerous precision instrument customers.
Small Fixtures and Assembly Tooling
Electronic assembly jigs, micro clamps and watch repair tools. Small U-shaped magnets deliver properly calibrated holding force for these use cases: strong enough to secure workpieces without damaging delicate precision parts. 15×12×4 and 25×20×5 are the two most common small sizes for tooling and fixture industries.
Related U-Shaped Magnet Solutions
Browse Fullzen's complete U-shaped neodymium magnet range — from standard strength to heavy-duty large sizes, classic horseshoe shapes and custom manufacturing services.
Browse our full range of U-shaped neodymium magnets to match different project requirements:
Frequently Asked Questions
Answers to common questions about small U-shaped neodymium magnets — minimum sizes, precision tolerances, consistency, coatings, sensor applications and custom options.
Here are the most frequently asked questions from buyers of small U-shaped neodymium magnets:
The smallest mass-produced U-shaped magnet from Fullzen is model 5×4×2 mm, with approximately 1.5 kg pull force. Custom sizes can reach around 3 mm, subject to shape complexity and magnetic performance requirements. Ultra-tiny magnets carry high processing difficulty and scrap rate. We recommend consulting our sales engineer first to verify feasibility and cost.
Standard grade small U-shaped magnets come with dimensional tolerance ±0.05 mm and angular tolerance ±1°. Precision grade offers dimensional tolerance ±0.03 mm and angular tolerance ±0.3°. For magnetic flux consistency, batch deviation is controlled within ±3% (the common industry benchmark is ±5%). Higher precision requirements can be customized, please contact Fullzen engineering team for details.
Ni-Cu-Ni triple nickel coating is the most widely adopted option for consumer electronics, featuring good appearance, decent corrosion resistance and moderate cost. If an ultra-thin coating is needed to preserve assembly clearance, gold plating or Parylene coating is available, with coating thickness as thin as 1–5 μm. Parylene coating is recommended for medical devices thanks to excellent biocompatibility and an ultra-smooth surface.
Yes, with notes: small magnets have compact volume and fast heat dissipation, so their actual thermal performance is generally better than large magnets of the same grade. SH grade (max 150°C) or UH grade (max 180°C) are normally recommended. For high-temperature scenarios such as automotive electronics and industrial sensors, Fullzen can conduct high-temperature aging tests to guarantee long-term reliability.
Fullzen adopts four control stages to guarantee batch consistency for small magnets:
1-Strict raw material screening, using material from the same furnace per batch;
2-Precision cutting & grinding equipment with programmed machining parameters;
3-100% full inspection of magnetic properties, with automatic rejection of non-conforming parts;
4-Final random inspection per AQL standard before shipment. Customers comment that our product consistency outperforms the industry average.
Customers comment that our product consistency outperforms the industry average.
Yes. Gold plating and Parylene coating are premium surface treatments widely used on small magnets. Gold plating delivers elegant appearance and great electrical conductivity, commonly used in high-end electronics and connectors. Parylene coating is ultra-thin (1–5 μm), uniform and biocompatible, ideal for medical devices and precision sensors. Please reach out to our sales team for pricing and MOQ.
MOQ for standard small models ranges from 100 to 500 pieces depending on specifications. Custom micro magnets usually start at 1,000–5,000 pieces due to process complexity. For customers in the R&D phase, we provide flexible low-volume sampling solutions to validate designs with minimal cost. Please check with our sales engineer.
Small neodymium magnets themselves are safe, but please note the following points:
1、Their magnetic force is far stronger than conventional magnets; take care to avoid pinching fingers during assembly.
2、Keep away from pacemakers and other medical implants.
3、When used in consumer products, ensure magnets cannot detach and cause ingestion risk, especially for children’s items.
4、Magnetic shielding should be considered in design to prevent interference with internal electronic components.
Fullzen offers consultation on magnetic shielding design.
Request Your Free Quote Today
Share your U‑shaped neodymium magnet dimensions, magnetization requirements and end‑application details, and Fullzen’s professional engineering team will deliver customized technical solutions and a quotation within 24 hours.
