Horseshoe Neodymium Magnets — Industrial-Grade Upgrade from Classic Alnico

Short Description:

Fullzen Magnets is a manufacturer of horseshoe neodymium magnets based in Huizhou, China. We reimagine classic horseshoe magnets with advanced sintered NdFeB technology. With identical outer dimensions, our magnets deliver 5–8 times stronger pull force than traditional Alnico horseshoe magnets, and 10–15 times stronger than ferrite horseshoe magnets.

We offer full customization for horseshoe magnets. Custom mold opening is available according to your requirements on dimensions, arc radius, opening angle, magnet grade, coating and mounting structure. We provide one-stop OEM & ODM service: samples ready within 7 days, quotation within 24 hours. Please see our standard models below. For non-standard specifications, contact our sales engineers directly.

Send email to us

Product Detail

Company profile

Product Tags

Horseshoe Magnet vs U-Shaped Magnet: What's the Difference?

The classic horseshoe and the U-shaped magnet share the same magnetic principle — both have poles on the same side to create a closed flux path. The difference lies in geometry, application tradition, and available material options.

Many buyers often ask us: what is the difference between a horseshoe magnet and a U-shaped magnet?
The answer: essentially, they are two shape variants with the same magnetic circuit structure. Both have two magnetic poles on the same side and form a closed magnetic circuit through the attracted workpiece. The differences mainly lie in geometry and traditional applications.

Geometric Differences

A standard U-shaped magnet features parallel pole legs with rectangular cross-sections and a straight connecting top.
A horseshoe magnet has pole legs slightly flaring out toward the opening, with a curved, arched top, forming the classic horseshoe profile.
From a magnetism perspective, the curved top of the horseshoe design helps reduce magnetic flux loss at the bend, delivering slightly better magnetic circuit efficiency compared to the right-angle transition of U-shaped magnets.

Differences in Material & Traditional Applications

When people mention a horseshoe magnet, most will picture the classic yellow Alnico horseshoe magnet — the mainstream product of the 20th century, widely used for teaching demonstrations and precision instruments.
In contrast, U-shaped magnets are more commonly associated with industrial NdFeB magnets. They have a simpler form, easier for mass production and engineering assembly.

Material	BHmax (MGOe)	Pull Force*	Max Temp	Corrosion	Cost
Alnico 5	5.5	1× (baseline)	540°C	Excellent	$$$
Ferrite (Ceramic)	4.0	0.5×	250°C	Excellent	$
NdFeB N45	45	5–8×	80°C	Low (needs coating)	$$
NdFeB N42SH	42	4–6×	150°C	Low (needs coating)	$$
NdFeB N38UH	38	3.5–5×	180°C	Low (needs coating)	$$$

When should you upgrade from Alnico to NdFeB?

• Equipment miniaturization: For the same pull force requirement, NdFeB horseshoe magnets can reduce volume by 60–70%.

• Insufficient holding force: Your existing Alnico horseshoe magnets cannot provide enough magnetic holding power.

• Cost optimization: For high-performance applications, NdFeB offers a better performance-to-price ratio than Alnico.

• Product redesign: Upgrade legacy products to boost magnetic performance specifications.

When is Alnico still recommended?

•Continuous operating temperature above 200°C (Alnico handles up to 540°C).

•Extremely high stability and demagnetization resistance required (precision measuring instruments).

•Product heritage requires the classic appearance and material.

Horseshoe Neodymium Magnet Product Lineup

Explore Fullzen's standard horseshoe neodymium magnet models — from 25mm mini sizes to 80mm heavy-duty configurations, with N-grade and SH high-temperature options.

Fullzen's NdFeB horseshoe magnets cover the full range from lightweight to heavy-duty. The arc top is precision-ground, giving better magnetic circuit efficiency than a right-angle U-shape. The four representative models below correspond to different application tiers.

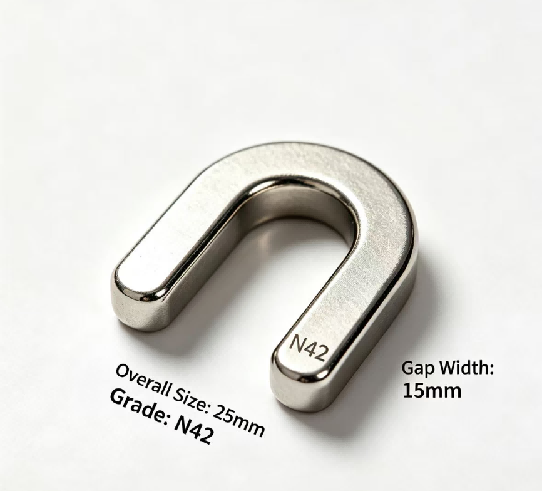

Mini Precision — 25mm, 7 kg Pull Force

25mm mini horseshoe neodymium magnet, N42 grade, 15mm opening width. Ni-Cu-Ni triple coating. Designed for precision instruments, teaching demonstration equipment, and small sensors. Compact and easy to install — the ideal upgrade replacement for traditional small Alnico horseshoe magnets.

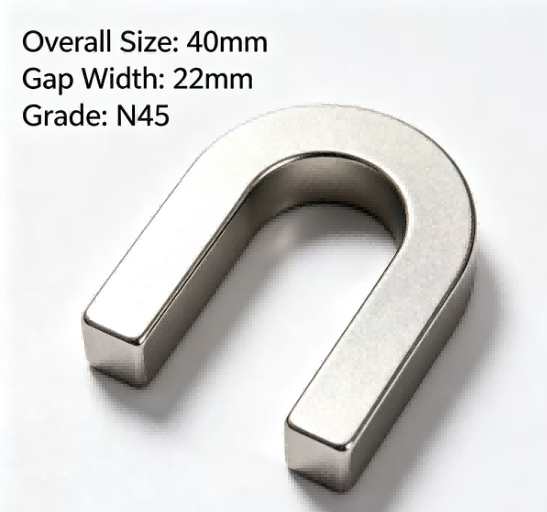

Standard Industrial — 40mm, 18 kg Pull Force

40mm standard horseshoe neodymium magnet, N45 grade, 22mm opening width. Ni-Cu-Ni coating. Our best-selling model — widely used in fixtures, testing equipment, electronic instruments, and automated production lines. Pull force is more than 6× that of a same-size Alnico horseshoe magnet.

Heavy Duty — 60mm, 38 kg Pull Force

15×12×4mm small U-shaped neodymium magnet, N42 grade, pole distance 9 mm. Ni-Cu-Ni triple nickel coating. Suitable for industrial sensors, small fixtures, inspection equipment and positioning & holding functions in automation machinery. Stable performance and excellent batch consistency, ideal for mass industrial applications.

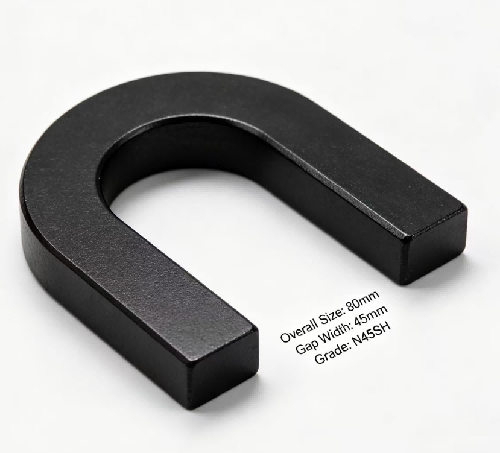

Industrial High-Temp — 80mm, 55 kg Pull Force

80mm industrial-grade horseshoe neodymium magnet, N45SH high-temperature grade (≤150°C), 45mm opening width. Black epoxy coating, suitable for high-temperature and high-humidity environments. Designed for welding fixtures, heat treatment equipment, automotive production lines, and outdoor magnetic separation applications. The SH grade ensures no demagnetization in high-temperature environments.

Size (mm)	Opening (mm)	Grade	Coating	Pull Force (kg)*	Max Temp	MOQ
20×15×4	12	N35	Ni-Cu-Ni	3.5	≤80°C	200pcs
25×20×5	15	N42	Ni-Cu-Ni	7	≤80°C	100pcs
30×25×6	18	N42	Ni-Cu-Ni	12	≤80°C	100pcs
40×30×8	22	N45	Ni-Cu-Ni	18	≤80°C	100pcs
40×30×8	22	N45SH	Black Epoxy	16	≤150°C	100pcs
50×40×10	30	N48	Ni-Cu-Ni	26	≤80°C	50pcs
60×50×10	35	N48	Ni-Cu-Ni	38	≤80°C	50pcs
60×50×10	35	N45SH	Black Epoxy	34	≤150°C	50pcs
80×60×12	45	N45SH	Black Epoxy	55	≤150°C	30pcs
80×60×12	45	N42UH	Black Epoxy	50	≤180°C	30pcs
20–120mm+	Custom	N35-N52	Custom	Up to 120kg	≤200°C	Quote

Pull force test conditions: 10mm thick low-carbon steel plate, full flat contact, vertical force at room temperature 25°C. Actual performance may decrease due to surface roughness, air gap, temperature, and other factors. A 2–3× safety factor is recommended for selection.

Note: Sample orders are not subject to MOQ. MOQ applies only to bulk production orders.

Custom Horseshoe Magnet Manufacturing

Fullzen provides full custom manufacturing for horseshoe neodymium magnets — custom sizes, arc radii, opening angles, high-temperature grades and mounting features.

Because horseshoe magnets have an arc profile, customization requirements are often higher than for standard U-shaped magnets. Fullzen has its own grinding and wire-cutting workshops, supporting full-dimension customization:

Size customization: Full range from 20mm to 120mm+, any arc radius and opening angle

Grade customization: N35–N52 + SH/UH/EH full high-temperature grades, optimal recommendation based on working conditions

Coating customization: 6 standard coatings + special coating customization

Structural customization: Counterbore, threaded holes, mounting base plate, protective sleeve encapsulation

Appearance customization: Colored coatings, pole face markings, laser-engraved logo

Packaging customization: Individual packaging, teaching sets, brand OEM

For detailed customization process and capabilities, please visit our U-shaped neodymium magnet custom service page.

Key Specifications at a Glance

Complete specification overview of Fullzen horseshoe neodymium magnets — size range, pull force, grade options, temperature ratings, coatings, and precision tolerances.

Standard size range: 20×15×4mm → 80×60×12mm (10 standard models)

Custom max size: 120mm+, single-piece pull force up to 120kg

Pull force range: 3.5kg – 55kg (standard models, measured)

Material: Sintered NdFeB (Nd₂Fe₁₄B)

Grade options: N35 / N42 / N45 / N48 / N50 (standard series)

High-temp grades: SH (150°C) / UH (180°C) / EH (200°C)

Arc precision: R-angle tolerance ±0.1mm, opening angle tolerance ±0.5°

Dimensional tolerance: ±0.05mm (precision grade) / ±0.1mm (standard grade)

Remanence Br: 11.8 – 14.2 kGs

Max energy product BHmax: 33 – 48 MGOe

Coating options: Ni-Cu-Ni / Black Epoxy / Zinc / Gold / Parylene

Magnetization direction: Axial (N/S poles on both end faces), multi-pole magnetization customization available

Density: Approx. 7.5 g/cm³

Industrial & Commercial Applications

Fullzen horseshoe neodymium magnets are used in precision instruments, educational equipment, industrial fixturing, sensor systems, and specialty machinery — where classic horseshoe form meets modern neodymium performance.

Educational and Laboratory Equipment

Teaching demonstration horseshoe magnets are upgrading from traditional Alnico to NdFeB — stronger pull force makes physics experiments more vivid, and smaller size makes storage and transport easier. Fullzen supplies NdFeB horseshoe magnets to multiple teaching instrument manufacturers, with customizable appearance colors (including classic red + blue pole markings) and packaging.

Precision Instruments and Meters

Precision measuring instruments, ammeters, voltmeters, testing meters — these devices traditionally used Alnico horseshoe magnets because of the need for extremely high magnetic stability. Today, Fullzen's high-stability NdFeB horseshoe magnets combined with temperature compensation design can already replace Alnico in many applications, while reducing volume by more than 60%.

Industrial Fixturing and Workholding

The arc transition structure of horseshoe magnets offers unique advantages in fixturing — more uniform stress distribution, softer pole face contact, less risk of scratching workpiece surfaces. Fullzen's industrial-grade horseshoe neodymium magnets are widely used in welding positioning fixtures, electronic assembly jigs, and precision machining auxiliary positioning.

Sensors and Switches

The open structure of horseshoe magnets provides a uniform magnetic field environment for Hall sensors, reed switches, and proximity sensors. The arc pole face can produce a more uniform magnetic field gradient, suitable for sensor applications requiring precise trigger points. For precision small-size models, see our small U-shaped neodymium magnet product line.

Door Catches and Magnetic Latches

Cabinet door catches, display case door catches, industrial equipment latches — horseshoe magnets have a long application history in door catch applications. The NdFeB version offers stronger pull force and smaller size, providing a more compact magnetic catch solution for high-end furniture and industrial equipment.

Custom Specialty Equipment

Many specialty devices require a horseshoe magnetic circuit structure but have unique requirements for size, performance, or mounting method. Fullzen provides fully custom horseshoe magnet solutions — from a few millimeters for micro instruments to hundred-millimeter class for large industrial equipment, all designed and produced to order.

Application Scenarios

Fullzen small U-shaped neodymium magnets have been widely adopted in the following precision application scenarios:

Consumer Electronics and Wearables

Magnetic attraction for Bluetooth earbud charging cases, smartwatch bands, tablet styluses, and laptop screen latching. Micro U-shaped magnets are heavily applied in consumer electronics to achieve fast positioning and firm adsorption. Fullzen 10×8×3 and 15×12×4 are our two most popular specifications among consumer electronics clients. High-end surface treatments such as medical-grade Parylene coating and gold plating are available.

Industrial Sensors and Switches

Hall sensors, reed switches, proximity switches and position sensors represent the largest application field for small U-shaped magnets. The open structure of U-shaped magnets delivers a uniform and controllable magnetic field for sensors. Fullzen precision small U-shaped magnets feature magnetic flux deviation ≤±3%, guaranteeing highly consistent trigger points for every sensor. We provide mass supply for many renowned sensor manufacturers.

Medical and Healthcare Devices

Blood glucose meters, inhalers, portable diagnostic equipment, beauty devices, and more. Magnetic structures in medical devices demand exceptional reliability and biocompatibility. Fullzen micro U-shaped magnets with Parylene coating have passed biocompatibility tests and are mass-supplied to multiple medical device manufacturers. The ISO 13485 medical quality management system ensures full traceability throughout production.

Automotive Electronics

Small U-shaped magnets are increasingly used in sensors, actuators and miniature solenoid valves within automotive electronics. Automotive-grade applications impose strict requirements on reliability and temperature stability. Fullzen small U-shaped magnets in SH and UH high-temperature grades are certified to IATF 16949, enabling stable supply for auto component manufacturers.

Precision Instruments and Meters

Magnetic circuit assemblies for precision measuring instruments, analytical equipment and optical devices require extremely tight dimensional tolerance and stable magnetic performance. Fullzen precision small U-shaped magnets hold a tolerance of ±0.03mm with magnetic flux consistency of ±3%, serving numerous precision instrument customers.

Small Fixtures and Assembly Tooling

Electronic assembly jigs, micro clamps and watch repair tools. Small U-shaped magnets deliver properly calibrated holding force for these use cases: strong enough to secure workpieces without damaging delicate precision parts. 15×12×4 and 25×20×5 are the two most common small sizes for tooling and fixture industries.

Related U-Shaped Magnet Solutions

Browse Fullzen's complete U-shaped neodymium magnet range — from standard strength to heavy-duty large sizes, classic horseshoe shapes and custom manufacturing services.

Browse our full range of U-shaped neodymium magnets to match different project requirements:

Full Range of U‑Shaped Neodymium Magnets: Browse our complete U‑magnet series covering 8 dedicated product lines.

Large U‑Shaped Neodymium Magnets – Oversized heavy‑duty types with pull force exceeding 200 kg, designed for magnetic separation and lifting equipment

Horseshoe Neodymium Magnets – Classic curved‑profile magnets, ideal for laboratory teaching instruments and precision devices

Small U‑Shaped Neodymium Magnets – Compact precision grades down to 5 mm, engineered for sensors and miniature machinery

Custom U‑Shaped Neodymium Magnets – Full‑scale OEM & ODM customisation according to your drawings, fast sampling within 7 days

Frequently Asked Questions

Answers to common questions about horseshoe neodymium magnets — the difference from U-shaped magnets, Alnico vs neodymium comparison, customization, strength, and applications.

What is the difference between a horseshoe magnet and a U-shaped magnet?

They are essentially two geometric variants of the same magnetic circuit structure (poles on the same side). The horseshoe has an arc transition at the top with poles flaring slightly outward, while the U-shape has a flat top with parallel poles. In terms of magnetic circuit efficiency, the horseshoe is slightly better — typically 5–10% higher pull force under equal pole area and air gap — but the U-shape is easier to mass-produce and install, and costs less. Which to choose depends on your application and appearance requirements.

Can neodymium be made into a horseshoe shape?

Yes — this is a common misconception. Many people assume horseshoe magnets can only be made of Alnico, because before NdFeB was invented, Alnico was the strongest permanent magnet material, and classic horseshoe magnets were all made of Alnico. Today, sintered NdFeB can absolutely be processed into horseshoe shapes, with 5–8× the pull force of same-size Alnico. Fullzen has been supplying NdFeB horseshoe magnets to global customers in volume.

How much stronger is a neodymium horseshoe magnet vs Alnico?

At equal physical size, NdFeB horseshoe magnets deliver 5–8× the pull force of Alnico 5, and 10–15× that of ferrite horseshoe magnets. For example, a standard 40mm Alnico horseshoe magnet has a pull force of about 2–3kg, while a same-size Fullzen N45 NdFeB horseshoe magnet measures 18kg. This means device designs can be smaller, lighter, and stronger.

Are horseshoe magnets stronger than bar magnets?

Yes — under single-pole magnetization, equal volume, and free attraction conditions, the effective pull force of a horseshoe/U-shaped magnet is typically 2–3× that of a bar magnet. The reason is that the horseshoe places both poles on the same side, forming a closed magnetic circuit through the workpiece, concentrating magnetic field lines in the working air gap. A bar magnet's field lines diverge in all directions, so most of its magnetic energy does not participate in work.

Why are horseshoe magnets shaped like a U/horseshoe?

The core purpose of the horseshoe shape is to improve magnetic circuit efficiency — placing the N and S poles on the same side, allowing the attracted workpiece to bridge the two poles and form a closed loop. This design greatly reduces flux leakage and concentrates more magnetic flux on the working surface. This principle was discovered as early as the 19th century and remains one of the most important structural design principles in industrial magnets today.

What is the proper way to store a horseshoe magnet?

The correct storage method is to use a keeper — a piece of soft iron placed between the two poles to keep the magnetic circuit closed. This reduces self-demagnetization effects and extends magnet life. For NdFeB horseshoe magnets, although their coercivity is much higher than Alnico and self-demagnetization is not significant, using a keeper is still recommended best practice, and it also prevents accidental attraction safety hazards.

Can you make custom horseshoe magnet sizes and shapes?

Yes. Fullzen supports full-dimension customization — sizes from 20mm to 120mm+, any arc radius, opening angle, and pole thickness. We also support structural customization such as counterbores, threaded holes, and mounting base plates, as well as appearance customization such as colored coatings and pole face markings. Just provide drawings or specifications, and we will issue an engineering review and quotation within 24 hours.

How do I choose between horseshoe and U-shaped for my project?

Selection advice: 1) If you need the classic horseshoe appearance or an upgrade replacement for an existing Alnico horseshoe magnet — choose horseshoe. 2) If you want the best cost-performance and engineering installation convenience — choose U-shaped. 3) If magnetic circuit efficiency is a key metric and budget allows — horseshoe is slightly better. 4) If you need large-scale standardized production — U-shaped costs less. Not sure? Tell Fullzen engineers your application scenario, and we'll help you choose.
